Standard Export Carton Packing
Carton Packing: 1 Nos.
Motor, Gear Box, Nut Bolt, Tripod, Motor Cover
Impeller Fan (2 PCS): Plastic Wrap
SS Frame: Plastic Wrap
Float (2 PCS): Plastic Wrap.
1 - 1
To be negotiated

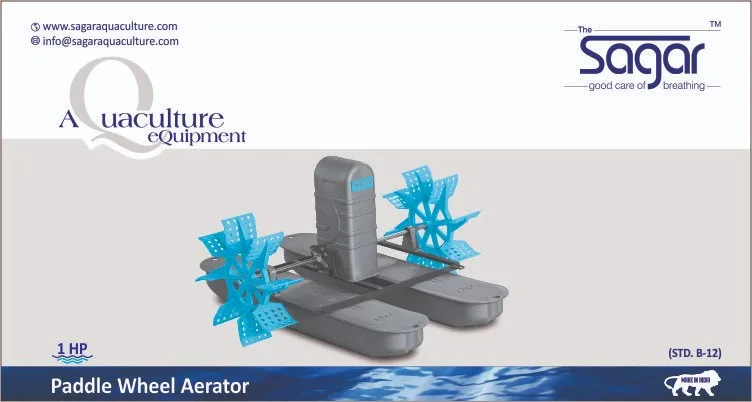

1HP Paddle Wheel Aerator
1HP Paddle Wheel Aerator - STD - B12 is specially design for extensive & modified extensive Shrimp/ Prawn & Fish Aqua Culture. It helps to increase DO concentration during pond culture & it also helps for removed temperature stratification in the daytime and eliminated oxygen gradient in the nighttime. Paddle Wheel Aerator create good water current ( Flow ) in the pond so, every time it clean Feeding Path and due to water current all feed waste & Animal Waste move to the pond center area.
SPECIFICATIONS FOR 1HP PADDLE WHEEL AERATOR
IE Class - 2 ISI mark Motor
Bevel - Helical Type Gear Box
Stainless Steel - 304 with High Quality Rubber
Virgin HDPE with UV
Virgin PPCP with UV
Virgin HDPE with UV
Stainless Steel - 316 L Sleeve with inside Solid Iron Road
Stainless Steel - 304 L Angle
SS Bolt Kit
Stainless Steel - 304
Virgin Nylon with 4% UV
1.Arcurate-bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models. 2. The accurate-bevel gear is made of chromium-manganese-titanium with carbon-nitrite surface treatment. Ensuring long usage life spans and high rigidity. 3. Mechanical seal is available to prevent oil leakage 4.High efficiency oxygen transferring ability with 1.2-6kgs O2/h 5.Have good water current circulation as the making of large Area water wave 6. Easy assessment,Operation and maintenance 7. Durable service life
* Not Only Selling You Aerator But also Professional Customize Aeration System for Your Pond.
You can get your own aeration system from our technical department after you provide us one of information as below: 1. Your ponds size, water depth, breeding density, aquaculture species. 2. Your target price for your ponds aeration system. 3. Your request of Oxygen per hour for your pond.
* Professional Sale Service : Make you NO-Worry for use.
1. Can customize quality level to match customer's target price. 2. Can provide samples first, samples are packaged by wooden box. 3. Can provide any accessories parts on aerator for any quantity. 4. Many different models and different quality level for customer to choose.

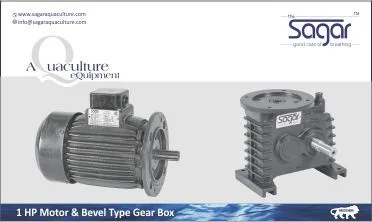

Name: 1HP AC Electric Motor
Rated Power : 0.75KW
Phase: 1 Phase / 3 Phase
Voltage: 210V / 415V
Rated Frequency: 50Hz/60Hz
Color: Epoxy Dark Grey ISI Mark heavy duty
IE Class - 2 Motor
• ISI Mark heavy duty IE Class - 2 Motor
• We are using High Quality NRB Brand Bearing( Made in India) for long life of bearing and smooth running. • Our motor body casting is High Presser molding system, it design gives beautiful look and generate low Heat.
Name: Bevel Gear Box RPM: 106 Reducing Ratio: 1:13 Gear Type: Bevel & helical Body: Cast Iron Shaft OD: 25 mm Shaft: SS 304
• Our gear body machining done by HMC machine for accurate Fitting & perfect output. • All bearings are NRB brand (made in India)only, it gives more life to gearbox and support for Smooth Running. • 100% gear box pass throw noise level testing and water leakage testing for best Quality. • Due to Bevel type gear box, it's saving 20% power consumption compare to Warm type gear box.

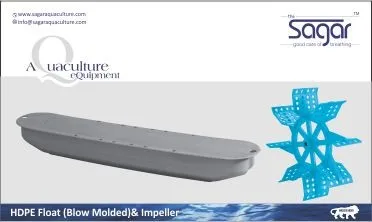

Name : HDPE Float Material: HDPE Virgin Weight: 6.5 to 7 Kg Color: Silver/Blue Length: 174 CM (5 Feet 8.5") Width: 33.02 CM (13") Height:20.32 CM (18")
• Due to Heavy Weight , we provide enough thickness to all side wall for long life
• By adding 4% UV float get protection for direct sunlight.
Name: Impeller Material: PPCP Virgin Weight: 2.4KG Bush: Copper-Brass Type Die: 68 CM Type: Single Mould-Undetectable
• Due to Single Unit Impeller, it's create more water flow and spread more water • Copper Brass bushing protect from rust • Due to high technical Impeller Design, our aerator provide best performance • By adding 4% UV float get protection for direct sunlight • Sky Blue color with silver float combination give very attractive look
Name: Stainless Steel Frame Material: SS-304 Original Angle
Weight: 6.5 KG
Color: Dark Grey Epoxy Color for better Look
• Due to Original L Angle, it is very heavy duty frame & it give good stability to Aerator in running condition
• SS 304 material with epoxy color protect Frame from Rust.
Material: SS- 316 L Sleeve with Sleeve with solid Iron Road
Weight: 3.8 To 4.2 Kg
Grow: Made by HMC Machine
Die: 25.4 MM
Length: 56 CM
• Due to SS 316 L 1.5 mm thick Sleeve 100% rust proof • due to inside solid Iron Bar, it very heavy & it has long life.

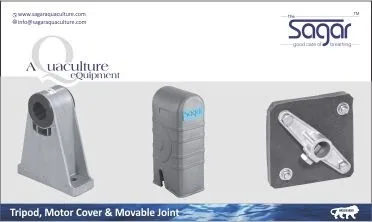

Name: HDPE Gear-Motor Cover Weight: 2.3 To 2.4 Kg Length: 32 CM Width: 24 CM Height: 65.5 CM
• Due to Heavy Weight , we provide enough thickness to all side wall for long life • By adding 4% UV float get protection for direct sunlight • Silver color float make our product unique from others company common blue color
Name: Stainless Steel Movable Joint Material: SS-304 with 10% Nickle
Rubber: High Quality 15 mm Thick rubber
• Due to SS - 304 Caste movable joint - it don’t get rust • Due to Heavy Quality Rubber it is has long life • Due to SS - 304 Bolt it can open easily after every season ( After Harvesting )
Packing & Delivery
123 (L) * 456 (W) * 789 (D)
Standard Export Carton Packing Like Under:-Carton Packing: 1 Nos. Motor, Gear Box, Nut Bolt, Tripod, Motor Cover Impeller Fan (2 PCS): Plastic Wrap SS Frame: Plastic Wrap Float (2 PCS): Plastic Wrap.
123 (L) * 456 (W) * 789 (D)
In container there is non wooden Box packing, The normal package is wooden box for LCL shipment(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
1. Suggest to client suitable machine model, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component.
3. Answer customer concerned questions.
1. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition. 2. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time. 5. Manual documents available.
