8 Paddle Wheel Long Arm Aerator for Aquaculture Equipment Long Arm Aerator

FOB Reference Price:Get Latest Price
  • >=5 Sets
    $450.00
Report Suspicious Activity
Overview
Quick Details
Brand Name:
SAGAR
Model Number:
Long Arm Aerator
Name:
Long Arm Paddle wheel Aerator
Use:
Aquculture
Type:
8 Paddle Wheel Aerator
Power:
5hp - 10hp Diesel Aerator
Application:
Aquacuture Fish/Shrimp Farming
Color:
Blue-Silver
Supply Ability
Supply Ability:
1500 Set/Sets per Month
Packaging & Delivery
Packaging Details
In container there is non wooden Box packing, The normal package is wooden box for LCL shipment(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
Port
Mundra/Nahavaseva India
Product Description

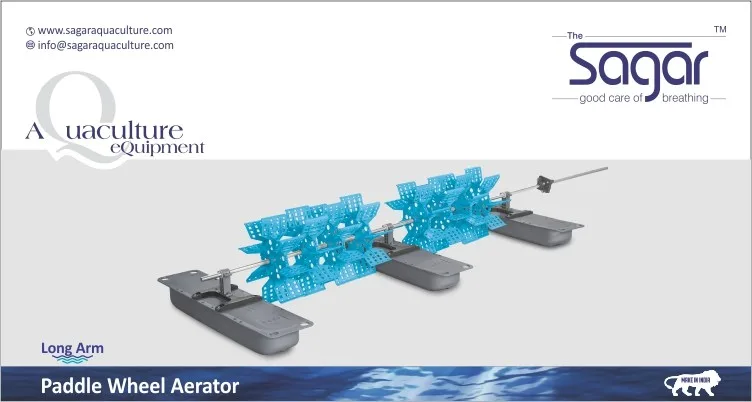

8 Paddle Wheel Long Arm Aerator

8 Paddle Wheel Long Arm Aerator is specially design for extensive & modified extensive Shrimp/ Prawn & Fish Aqua Culture. It helps to increase DO concentration during pond culture & it also helps for removed temperature stratification in the daytime and eliminated oxygen gradient in the nighttime. 8 Paddle wheel Long arm Aerator create good water current ( Flow ) in the pond so, every time it clean Feeding Path and due to water current all feed waste & Animal Waste move to the pond center area. High efficiency of oxygen Transfering. Low use cost as for the advantages of energy-saving ,long duraabullity and easy maintenance.

Parts Name
Quantity
Sort Specification
Diesel Engine
1
7.5hp Engine Air Cooling, Electric and manual start
Reducer
1
Chain type Reducer
Movable Joint
1
CI Casting with High Quality Rubber
HDPE Float
3
Virgin HDPE with UV
Impeller
8
Virgin PPCP with UV
Tripod
3
Virgin PPCP & Naylon Bush with UV
Shafting
1
GI Round pipe (OD-32)
Tripod Stand
3
Virgin PPCP with UV
SS Blot Kit
1
Stainless Steel - 304

Main Features

1)Diesel Engine Started, suitable in the areas without enough or avialable power

2) High Efficiency Oxygen transferring ability with 7.8kgs O2/h

3)Have Good water Current Circulation as the making of large Area water Wave.

4) Easy ti Install, Operate and Maintain.

5) Durable Service Life.


* Not Only Selling You Aerator But also Professional Customize Aeration System for Your Pond.
You can get your own aeration system from our technical department after you provide us one of information as below:

1. Your ponds size, water depth, breeding density, aquaculture species.

2. Your target price for your ponds aeration system.

3. Your request of Oxygen per hour for your pond.

* Professional Sale Service : Make you NO-Worry for use.

1. Can customize quality level to match customer's target price.

2. Can provide samples first, samples are packaged by wooden box.

3. Can provide any accessories parts on aerator for any quantity.

4. Many different models and different quality level for customer to choose.

Certifications
Detailed Images

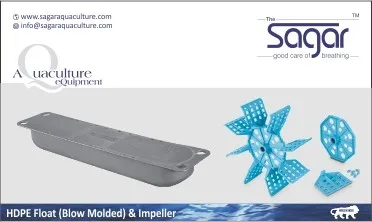

HDPE FLOAT:


Material : HDPE Virgin
Weight : 5.1 to 5.3 KG
color: Silver / Blue available
Length : 55.02 CM
Width : 33.05 CM
Height : 19.05 CM

• Due to Heavy Weight , we provide enough thickness to all side wall for long life

• By adding 4% UV float get protection for direct sunlight

• Silver color float make our product unique from
others company common blue color.

Impeller:

Material : PPCP Virgin
Weight : 2.1KG
Bush : Copper - SS-Bussing
Die : 65 CM
Width : 20.5 CM
Color: Sky Blue
Type : detectable

• Due to Single Unit Impeller, it's create more water flow and spread more water

• Due to high technical Impeller Design, our aerator provide best performance

• By adding 4% UV float get protection for direct sunlight

• Sky Blue color with silver float combination give very attractive look.

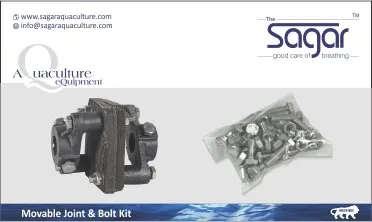

Movable Joint:
Material : Ci Casting
Rubber : High Quality 15mm thick rubber
Bolt : SS - 304


• Due to Heavy Quality Rubber it is has long life

• Due to SS - 304 Bolt it can open easily after every season ( After Harvesting )



SS Bolt Kit:

Material : Stainless Steel - 304
Bolt : 18 Pcs.
Nut: 18 Pcs.
Washer : 36 Pcs.


• Due to SS - 304 material it is rust free and long life.



Our Service

Pre-Sales Service

1. Suggest to client suitable machine model, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component.
3. Answer customer concerned questions.

After-Sales Service

1. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
2. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.

5. Manual documents available.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
In container there is non wooden Box packing, The normal package is wooden box for LCL shipment(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
Related Products

2hp Paddle Wheel Aerator

91.8% Response Rate

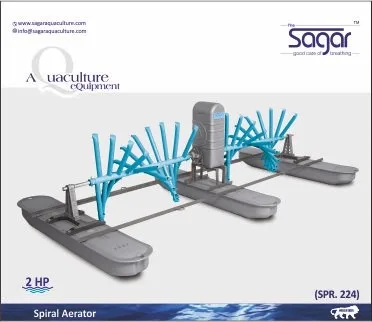

2hp Spiral Aerator
