3HP Pro Paddle Wheel Aerator

FOB Reference Price:Get Latest Price
$240.00 - $385.00 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
SAGAR
Model Number:
PRO-B36
Name:
3HP Pro Paddle Wheel Aerator
Motor:
AC Electric Motor
Type:
Bevel Gear
Power:
2.25kw
Voltage:
(1ph/220V) (3ph/415V)
Output:
3.5kg/H
Use:
Shrimp farming/Aquaculture/Fish farming
Weight:
125kgs
Color:
Silver & Blue
Load Qty.:
40" - 75 Units 20" - 35 Units
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Carton Packing
Like Under:-
Carton Packing: 1 Nos.
Motor, Gear Box, Nut Bolt, Tripod, Motor Cover
Impeller Fan (6 PCS): Plastic Wrap
SS Frame: Plastic Wrap
Float (4 PCS): Plastic Wrap.
Port
Mundra/Nahvasheva
Product Description

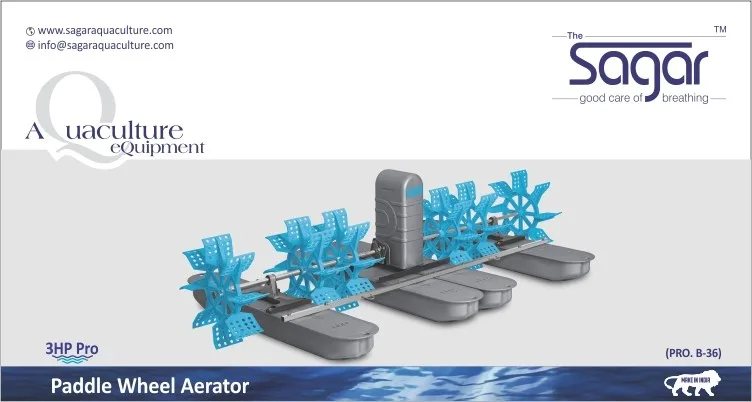

3HP Pro Paddle Wheel Aerator


3HP Paddle Wheel Aerator - PRO - B36 is specially design for extensive & modified extensive Shrimp/ Prawn & Fish Aqua Culture. It helps to increase DO concentration during pond culture & it also helps for removed temperature stratification in the daytime and eliminated oxygen gradient in the nighttime. Paddle Wheel Aerator create good water current ( Flow ) in the pond so, every time it clean Feeding Path and due to water current all feed waste & Animal Waste move to the pond center area.


SPECIFICATIONS FOR 3HP PADDLE WHEEL AERATOR
Item No.
Part Name
Qty./ Set
Short Specification
1
Motor
1
Light body Motor
2
Gear Box
1
Bevel - Helical Type Gear Box
3
Movable Joint
2
Iron casting movable joint
4
HDPE Float
4
6 kg Virgin HDPE with UV
5
Impeller
6
Virgin PPCP with UV
6
HDPE Cover
1
Virgin HDPE with UV
7
Shafting
2
Stainless Steel - 316 L Sleeve with inside Solid Iron Road
8
SS Frame
1
SS 304 pipe + plastic stand
9
SS Bolt Kit
1
Stainless Steel - 304
10
Tripod
4
Virgin Nylon with 4% UV

Main Features

1.Arcurate-bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models.
2. The accurate-bevel gear is made of chromium-manganese-titanium with carbon-nitrite surface treatment. Ensuring long usage life spans and high rigidity.
3. Mechanical seal is available to prevent oil leakage
4.High efficiency oxygen transferring ability with 3.5kgs O2/h
5.Have good water current circulation as the making of large Area water wave
6. Easy assessment,Operation and maintenance
7. Durable service life

* Not Only Selling You Aerator But also Professional Customize Aeration System for Your Pond.

You can get your own aeration system from our technical department after you provide us one of information as below:
1. Your ponds size, water depth, breeding density, aquaculture species.
2. Your target price for your ponds aeration system.
3. Your request of Oxygen per hour for your pond.

* Professional Sale Service : Make you NO-Worry for use.
1. Can customize quality level to match customer's target price.
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
Certifications
Detailed Images

Aerator Part:

Name: 3HP AC Electric Motor

Rated Power : 2.25KW

Phase: 3 Phase

Voltage: 415V

Rated Frequency: 60Hz

Speed(RPM):1440

Color: Epoxy Dark Grey ISI Mark heavy duty IE Class - light body aerator motor



• Light body aerator Motor

• We are using High Quality NRB Brand Bearing( Made in India) for long life of bearing and smooth running.
• Our motor body casting is High Presser molding system, it design gives beautiful look and generate low Heat.



Name: Bevel Gear Box
RPM: 106
Reducing Ratio: 1:13
Gear Type: Bevel & helical
Body: Cast Iron
Shaft OD: 25 mm
Shaft: SS 304


• Due to Bevel type gear box, it's saving 20% power consumption compare to Warm type gear box.
• Our gear body machining done by HMC machine for accurate Fitting & perfect output.
• All bearings are NRB brand( made in India)only, it gives more life to gearbox and support for Smooth Running.
• 100% gear box pass throw noise level testing and water leakage testing for best Quality.
• Gear box painted by Epoxy Primer and color only for protect from rust.


Name : HDPE Float

Material: HDPE Virgin
Weight: 6.5 Kg
Color: Silver/Blue

Length: 174 CM (5 Feet 8.5")
Width: 33.02 CM (13")
Height:20.32 CM (18")


• Due to Heavy Weight , we provide enough thickness to all side wall for long life
• By adding 4% UV float get protection for direct sunlight.




Name: Impeller
Material: PPCP Vergin
Weight: 2.4KG
Bush: Copper-Brass Type
Die: 68 CM

Width: 19.8 CM
Type: Single Mould-Undetectable


• Due to Single Unit Impeller, it's create more water flow and spread more water
• Copper Brass bushing protect from rust
• Due to high technical Impeller Design, our aerator provide best performance
• By adding 4% UV float get protection for direct sunlight
• Sky Blue color with silver float combination give very attractive look.

Name: Shafting

Material: SS- 316 L Sleeve with Sleeve with solid Iron Road

Weight: 9.5 To 10  Kg

Grow: Made by HMC Machine

Die: 25 MM

Length: 131.6 CM


• Due to SS 316 L 1.5 mm thick Sleeve 100% rust proof
• due to inside solid Iron Bar, it very heavy & it has long life.


Name : Gearbox stand

Material : PPCP Material

Weight : 750 gm

Name: HDPE Gear-Motor Cover
Weight: 2.3 To 2.4 Kg
Length: 32 CM
Width: 24 CM
Height: 65.5 CM


• Due to Heavy Weight , we provide enough thickness to all side wall for long life
• By adding 4% UV float get protection for direct sunlight
• Silver color float make our product unique from others company common blue color



Name: Iron-Casting Movable Joint
Material: Iron & Casting

Rubber: High Quality 15 mm Thick rubber

Bolt: SS-304



• Due to Heavy Quality Rubber it is has long life
• Due to SS - 304 Bolt it can open easily after every season ( After Harvesting )

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
125Kgs



Packaging Details
Standard Export Carton Packing
Like Under:-Carton Packing: 1 Nos.
Motor, Gear Box, Nut Bolt, Tripod, Motor Cover.
Impeller Fan (6 PCS): Plastic Wrap
SS Frame: Plastic Wrap
Float (4 PCS): Plastic Wrap.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
In container there is non wooden Box packing, The normal package is wooden box for LCL shipment(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

 1. Suggest to client suitable machine model, final product capacity.

 2. Introduce machine's structure and features in detail, explain the        price component.

3. Answer customer concerned questions.

After-Sales Service

1. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
2. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.

4. Documents and certificate available in time.
5. Manual documents available
.

Related Products

1HP Electric Paddle Wheel Aerator

91.8% Response Rate

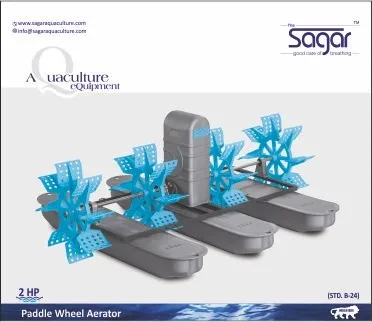

2HP Electric Paddle Wheel Aerator
