2HP Spiral Aerator

FOB Reference Price:Get Latest Price
$240.00 - $390.00 / Sets | 20 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
SAGAR
Model Number:
SPR-224
Name:
Electric spiral Aerator
Motor:
AC Electric Motor
Type:
Bevel Gear
Power:
1.5kw 2HP
Voltage:
(1ph/220V) (3ph/415V)
Use:
Shrimp farming/Aquaculture/Fish farming
Weight:
105kgs
Color:
Silver & Blue
Load Qty.:
40" - 105 Units 20" - 50 Units
RPM:
140
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Carton Packing
Port
Mundra/Nahvasheva
Video Description
Product Description

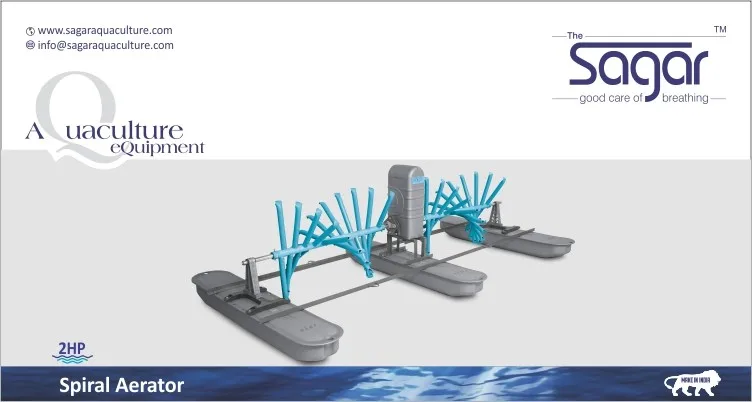

2HP Spiral Aerator

2HP Spiral Aerator - SPR-224 is specially design for high dissolve oxygen in aquaculture. In 2HP Spiral, power consumption is lower and oxygen desolation is higher. Spiral RPM is 140 so it can throw more water in the air with small droplets to dissolve more and more oxygen. Now a days farmers are going for intensive and super intensive culture, spiral is the best option for improving oxygen level in water column. It can not give much water current so, there is no problem about turbidity also.

SPECIFICATIONS FOR 2HP SPIRAL AERATOR
Item No.
Part Name
Qty./ Set
Short Specification
1
Motor
1
2HP class IE2  ISI Motor
2
Gear Box
1
Bevel - Helical Type Gear Box
3
Movable Joint
2
SS movable joint with High Quality Rubber
4
HDPE Float
3
7kg float with 100% Virgin HDPE with UV
5
Spiral leaf
24
100% Virgin PPCP with uPVC
6
HDPE Cover
1
Virgin HDPE with 4% UV
7
Shafting
2
Stainless Steel - 304 L Sleeve with inside Solid Alu Road
8
SS Frame
1
                         SS-304 frame + Plastic Stand
9
SS Bolt Kit
1
Stainless Steel - 304
10
Tripod
2
virgin Nylon with 4% UV

Main Features

1. Arcurate-bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models.
2. The accurate-bevel gear is made of chromium-manganese-titanium with carbon-nitrite surface treatment. Ensuring long usage life spans and high rigidity.
3. Mechanical seal is available to prevent oil leakage
4.High efficiency oxygen transferring ability with 2.6kgs O2/h
5.Have good water current circulation as the making of large Area water wave
6. Easy assessment,Operation and maintenance
7. Durable service life

* Not Only Selling You Aerator But also Professional Customize Aeration System for Your Pond.

You can get your own aeration system from our technical department after you provide us one of information as below:
1. Your ponds size, water depth, breeding density, aquaculture species.
2. Your target price for your ponds aeration system.
3. Your request of Oxygen per hour for your pond.

* Professional Sale Service : Make you NO-Worry for use.
1. Can customize quality level to match customer's target price.
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
Certifications
Detailed Images

Aerator Part:

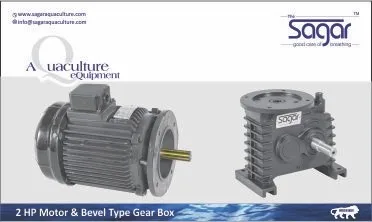

Name: 2HP AC Electric Motor

Rated Power : 1.5KW

Phase: 1 Phase / 3 Phase

Voltage: 210V / 415V

 Rated Frequency: 50Hz/60Hz

Speed(RPM):1440

Color: Epoxy Dark Grey  heavy duty Light body



• 2HP class IE2 ISI Motor

• We are using High Quality NRB Brand Bearing( Made in India) for long life of bearing and smooth running.
• Our motor body casting is High Presser molding system, it design gives beautiful look and generate low Heat.



Name: Bevel Gear Box
RPM: 106
Reducing Ratio: 1:13
Gear Type: Bevel & helical
Body: Cast Iron
Shaft OD: 25 mm
Shaft: SS 304


• Our gear body machining done by HMC machine for accurate Fitting & perfect output.
• All bearings are NRB brand (made in India)only, it gives more life to gearbox and support for Smooth Running.
• 100% gear box pass throw noise level testing and water leakage testing for best Quality.
• Due to Bevel type gear box, it's saving 20% power consumption compare to Warm type gear box.

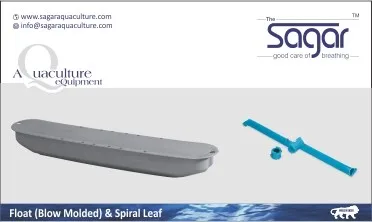

Name : HDPE Float
Material: HDPE Virgin
Weight: 7 Kg
Color: Silver/Blue
Length: 174 CM (5 Feet 8.5")
Width: 33.02 CM (13")
Height:20.32 CM (18")


• Due to Heavy Weight , we provide enough thickness to all side wall for long life
• By adding 4% UV float get protection for direct sunlight.


Name: Spiral leaf
Material: PPCP Vergin


• Due to high technical leaf and lock Design, our aerator provide best performance
• By adding 4% UV float get protection for direct sunlight
• Sky Blue color with silver float combination give very attractive look

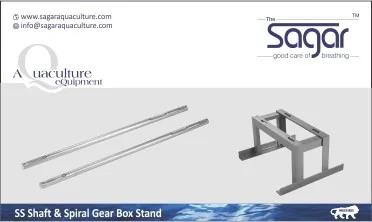

Name: Shafting

Material: SS- 316 L Sleeve with Sleeve with solid Iron Road

Weight: 6.5 To 7  Kg

Grow: Made by HMC Machine

Die: 25 MM

Length: 85 CM


• Due to SS 316 L 1.5 mm thick Sleeve 100% rust proof
• due to inside solid Iron Bar, it very heavy & it has long life.


Name: HDPE Gear-Motor Cover
Weight: 2.3 To 2.4 Kg
Length: 32 CM
Width: 24 CM
Height: 65.5 CM


• Due to Heavy Weight , we provide enough thickness to all side wall for long life
• By adding 4% UV float get protection for direct sunlight
• Silver color float make our product unique from others company common blue color

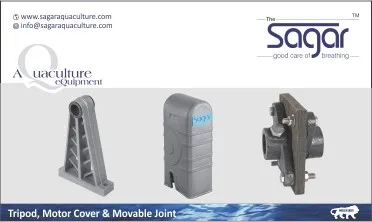

Name: Iron-Casting Movable Joint
Material: Iron & Casting

Rubber: High Quality 15 mm Thick rubber

Bolt: SS-304


• Due to Heavy Quality Rubber it is has long life
• Due to SS - 304 Bolt it can open easily after every season ( After Harvesting )

Packing & Delivery
Packaging
Size
Weight
105Kgs



Packaging Details

Standard Export Carton Packing

Packaging
Size
Weight



Packaging Details
In container there is non wooden Box packing, The normal package is wooden box for LCL shipment(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

 1. Suggest to client suitable machine model, final product capacity.

 2. Introduce machine's structure and features in detail, explain the        price component.

3. Answer customer concerned questions.

After-Sales Service

1. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
2. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.

4. Documents and certificate available in time.
5. Manual documents available.









Related Products

2HP Electric Paddle Wheel Aerator

91.8% Response Rate

3HP Electric Paddle Wheel Aerator

91.8% Response Rate

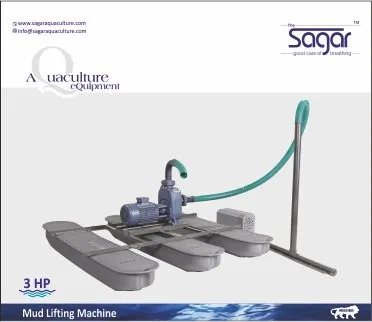

3HP Mud pump
